Ferrite Core

Ferrite Core Material Characteristics Automotive Products EMI/EMC Products

Drag left and right

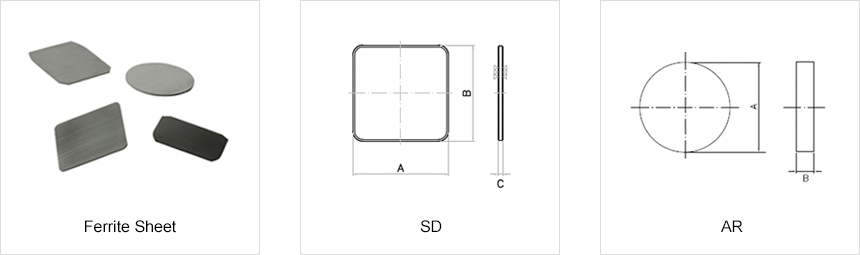

Part No. Type Dimensions in mm
A B C
SD50*50-1.0T SD 50.00 ± 0.50 50.000 ± 0.50 1.00 ± 0.10
SD51.5*51.5-1.0T SD 51.50 ± 0.50 51.50 ± 0.50 1.00 ± 0.10
SD52*52-2.5T SD 52.00  ±  0.50 52.00  ±  0.50 2.50  ±  0.10
SD53*46-0.75T SD 52.60 ± 0.55 49.90 ± 0.55 0.75 ± 0.05
SD53*53-1.0T SD 53.00 ± 0.50 53.00 ± 0.50 1.00 ± 0.10
SD53*53-2.5T SD 53.00 ± 0.50 53.00 ± 0.50 2.50 ± 0.10
SD100*45*10T SD 99.00 ± 0.15 45.00 ± 0.15 10.00 ± 0.15
SD100*100*4T SD 99.00 ± 0.15 99.00 ± 0.15 4.00  ± 0.15
SD100*100*10T SD 99.00 ± 0.15 99.00 ± 0.15 10.00 ± 0.15
SD100*100*14T SD 99.95 ± 0.15 99.95 ± 0.15 14.00 ± 0.15
SD100*100*17T SD 99.95 ± 0.15 99.95 ± 0.15 17.00 ± 0.15
AR48*1.5T AR 48.00 ± 0.50 1.50 ± 0.10
AR50*2.0T AR 50.00 ± 0.50 2.00 ± 0.10
