CPI1608NHQ series is a multilayer power inductor optimized for miniaturized DC/DC converters.

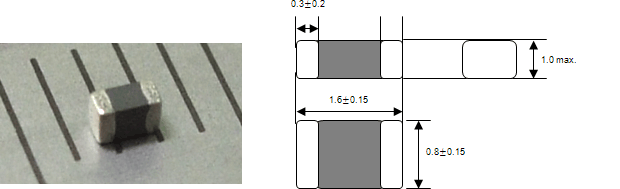

Dimension

1.60mm × 0.80mm x 0.85mm(typ.)

Applications

DC-DC converter circuits for mobile equipment

Features

· Small size (1.6mm x 0.8mm, 0.85mm typ. height)
· Large rated current (0.8A @ 1.0uH)
· Magnetically shielded
· High efficiency (Inductive Energy)
· Fast mounting speed
· RoHS compliant

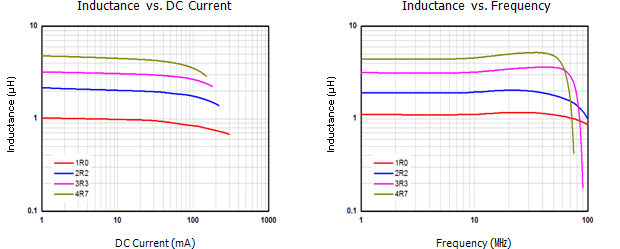

Characteristic
