CPI3216SHL series is a multilayer power inductor optimized for miniaturized DC/DC converters.

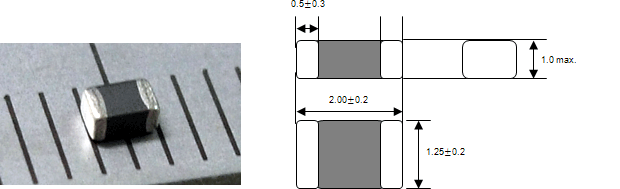

Dimension

2.00mm × 1.25mm × 1.00mm

Applications

DC-DC converter circuits for mobile equipment

Features

· Small size (2.00mm × 1.25mm, 1.00mm height)
· Large rated current (Idc_1.5A @ 1.0uH)
· Magnetically shielded
· High efficiency (Inductive Energy)
· Fast mounting speed
· RoHS compliant

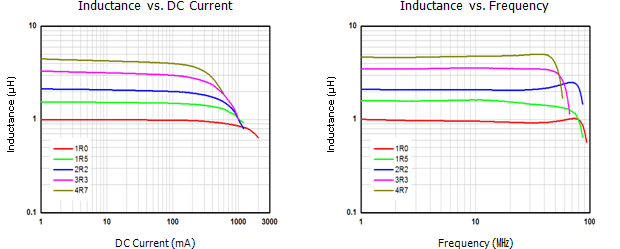

Characteristic
