CPI3216SHL series is a multilayer power inductor optimized for miniaturized DC/DC converters.

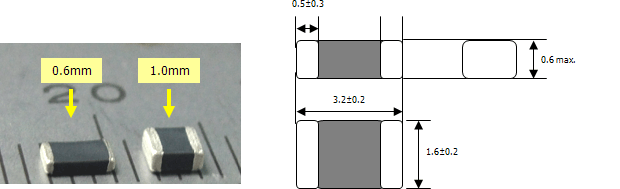

Dimension

3.20mm × 1.60mm x 0.60mm

Applications

DC-DC converter circuits for mobile equipment

Features

· Small size (3.2mm x 1.6mm, 0.6mm height)
· Large rated current (1.0A @ 2.2uH)
· Magnetically shielded
· High efficiency (Inductive Energy)
· Fast mounting speed
· RoHS compliant

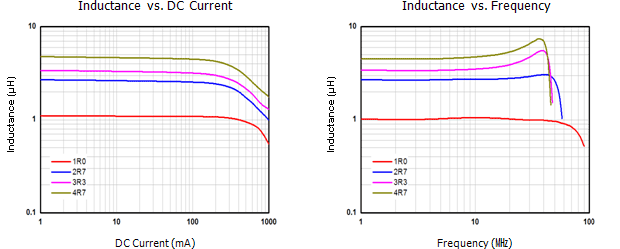

Characteristic
